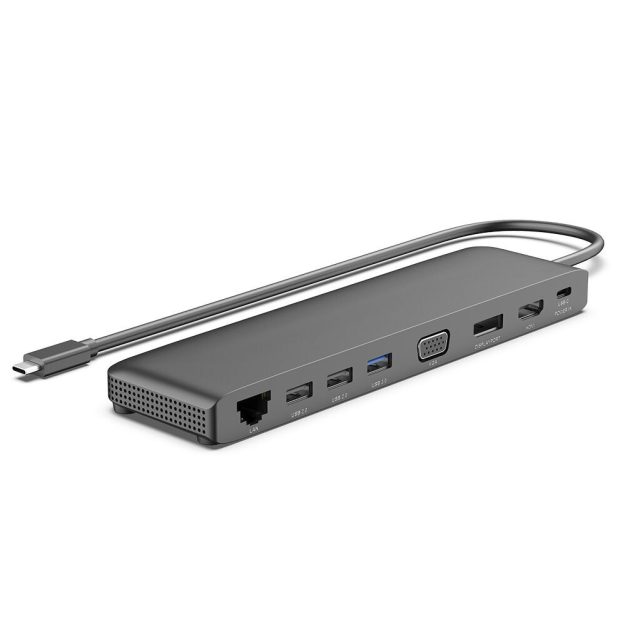

USB-C 4K@40Hz Triple Display MST Docking Station with USB Power Delivery

Introduction

Built in a slim, light, and miniature case, the MST dock is designed to meet more demands of extra USB peripherals and monitors. To extend or duplicate the content of your AV sources, you can select either DP or HDMI port for display of high resolution.

Besides, you can also connect your laptop to the upstream USB-C port and get it charged. The dock also provides you three USB 3.0 interfaces to enable you to enjoy high-speed data transfer.

Features

USB Power Delivery

The upstream USB-C port is compliant with USB power delivery specification revision 3.0 and supports up to 100W power supply, including max. 85W PD charging to laptop.

USB Data Transmission

The MST dock has three USB 3.0 ports, providing your devices plenty of connection possibilities with data transfer rate up to 5Gbps.

Triple Display

This MST dock has three different video ports, you can either select one port or combine two or all three of them for your own need.

RJ45 Gigabit Ethernet

Gigabit Ethernet port provides high-speed network and is backward compatible with 10/100Mbps.

SD/TF Card Reader

Support Secure Digital^TM v5.0 and SD v3.1 UHS-I.

Support Card Reader SDHC/SDXC (Capacity up to 2TB).

System Requirement

– Windows 7/8/10 or later

– Mac OS X or later

– CPU i7 or higher, RAM 4GB or above

– Host PC/laptop supporting PD 2.0

– PC/laptop with USB 3.1 full function Type-C port

(Power Delivery, Video Alternate, Display)

In the box / Package Content

1 x USB-C 4K@60Hz Triple Display Docking Station

1 x USB-C to USB-C cable

1 x 100W Power Adapter

1 x AC Power Cable

1 x User Manual

Working Standard

1. USB-C I/P: USB3.1 Gen2 (Data, Video and Upstream Charging)

2. Single DisplayPort: 4K/60Hz max.

3. Single HDMI: 4K/60Hz max.

4. USB-C Port: 5Gbps

5. 3 x USB-A Ports: 5Gbps

6. 1 x USBA Port: 5Gbps + BC1.2 Charging

7. RJ45: Gigabit Ethernet

8. CardReader: SDHC /SDXC /TF

9. Phone Jack: Stereo 4pole TRRS Stereo

Features

1. Compatible with Type-C USB3.1 Gen2 full specification PC Computer.

2. USB-C power port support PD3.0 for upstream power charging to PC computer maximum up to 100Watt

3. DisplayPort support V1.2a; HDMI port support HDMI V1.4b

4. Support single display, DP or HDMI up to 3840×2160@30, VGA up to 2048×1152@60

5. Support dual display, up to 2048×1152@60

6. Support triple display, up to 1920×1080@60

7. Build in Gigabit Ethernet network RJ-45 backward 10/100 Ethernet.

8. Build in 4-Pole phone Jack for stereo audio out and microphone in.

9. Build in Combo Card Reader support SD V2.0, SDHC up to 32GB; SDXC up to 2TB.

10. Two USB3.0 ports and two USB2.0 ports for devices connectivity.

11. Support OS Windows 7 / 8 / 10; Max OSX 10; Linux or the latest version.

If you need a sample for testing purpose, pls contact our colleagues, but not for individual home using.

Winstars is running factories both in China and in Vietnam. Made in China, or Made in Vietnam, as our customers require. The current pricing is Made in China only.
